Everything Head lights - The Ford Focus Forum

**JFord** · 09-03-2006, 12:27 AM

ALL Ford Focus Models share the same style headlights between 00-04.

Many of the Focaljet sponsors offer these style headlights or can help you get them. PLEASE contact them first.
To run your high beam and low beam at the same time your style headlight MUST have two differnt reflector housings. If you do the high/low mod on dual fillament headlights, you will cause to much heat inevitably melting things.

Stock 00-02.5
Standard halogen output with one halogen reflector (dual filament bulb); chrome surround.
http://jason.hodges.cc/Focaljet/Silv.../DiMSuMbOi.jpg

Stock 03&04
Standard Halogen output with one halogen reflector (dual filament bulb); this model has a grey "smoked" surround.
http://i20.photobucket.com/albums/b2...adlights10.jpg

SVT All year
Standard Halogen output with one halogn reflector (dual filament bulb); this model has a black surround.
http://jason.hodges.cc/Focaljet/Silv...psilversvt.jpg

Euro Spec '98
Standard halogen output with one halogen reflector (Dual filament bulb); this model has a black surround with turn signal in the housing.

Euro Spec St170
www.focussport.com/lighting.htm or www.bat-inc.com
Two halogen reflectors. 2 Seperate bulbs. Grey surround w/ turn signal incorporated in headlight through an amber signal lens. Also includes a city light.
http://jason.hodges.cc/Focaljet/Silv...es/MMI-ZX3.jpg

Euro Spec 2002 Facelift headlights
Two Halogen reflectors 2 seperate bulbs. Chrome surround w/ turn signal incorporated in headlight through an amber signal lens. Also includes a city light
http://jason.hodges.cc/Focaljet/Whit...Hermosillo.jpg

Euro Spec RS
Two halogen reflectors. 2 seperate bulbs. Chrome surround w/ turn signal incorporated in housing through a clear turn signal lens.
http://jason.hodges.cc/Focaljet/Yell...s/tdot-zx3.jpg

Mach/SVT/EAP/Euro Spec ST170 upgrade
Chrome Surround. One halogen high beam, One HID projector, One turn signal clear lense one city light. These headlights are often cracked open and painted black by buyers.
http://jason.hodges.cc/Focaljet/Silv...04CHS_jpg.html

Hella
www.focussport.com/lighting.htm
Paintable surround. One halogen reflector, one projector.
http://jason.hodges.cc/Focaljet/Silv...motorsport.jpg

Euro Spec Morette
Paintable surround. A noticeable visual difference between the Hella lamps is the lip which is accented here.
http://jason.hodges.cc/Focaljet/Yell...gebob_jpg.html

Euro Spec Hella
www.focussport.com/lighting.htm
Paintable Surround. One halogen refelector, one projector and one turn signal.
http://www.autobodyart.co.uk/Product...01-HL-QUAD.jpg
http://www.focusklubpolska.com.pl/ob...ampa_hella.jpg

(Can someone provide a company and description I've not been in the loop)
http://jason.hodges.cc/Focaljet/Blue...uses/Ataru.jpg

K&S
Black or chrome surround with ribs in the fender-ward corners. "Ion" style projectors have a blue tint to them. Otherwise the projector is clear. The projector (outward housing) should be your low beam. High beam reflector is fixed and low beam projector is adjustable. These lamps also have the infamous halos.
NOTE: Most of these lamps come with the wires reversed. Pop off the back rubber covers and swap the wires if this is the case with yours. The wires attach with connectors so the task is pretty simple.
http://jason.hodges.cc/Focaljet/Blue...Doctor_ion.jpg
http://jason.hodges.cc/Focaljet/Whit...s/NewtzZx3.jpg

Matrix
Paintable headlights. Two halogen reflectors. Often found on Ebay and claimed as projectors.
Note: These to be driveable in my experience with them need to be beefed up a bit.

FK
Black or chrome headlights. One projector housing one halogen reflector. LED turn signal toward inside upper corner. These lamps have the infamous Halos.
http://www.europerformance.co.uk/ima.../FKFSFO003.jpg

APC
Paintable headlights. Ribbed fender ward corner. Projectors and silver bezels around housings.
http://jason.hodges.cc/Focaljet/Red%.../The%20Don.jpg
http://jason.hodges.cc/Focaljet/Blac...lksonyfoci.jpg

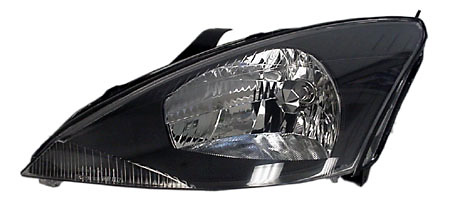

TYC Diamondbacks
Standard halogen output single halogen reflector (dual filament); black surround like SVTs.
http://www.commandocaralarms.com/pro...YC80582741.jpg

Thanks to focusonfocus for getting me thinking and Jason (Ataru) for assembling that gallery in the first place.
It's been a really long time since I have brushed up on my FJ knowledge but trial by fire. Anyone who has anything please jump on in!!! I am working on some Kelvin/Lumen/Light Defraction charts as well.

**03ZXthree** · 09-03-2006, 12:40 AM

another nice one...
sticky this one too

**03ZXthree** · 09-03-2006, 12:46 AM

you forgot the inpros...
And 03-04 regular foci have grey housing like you said...
But SVT is black housing...not grey

**JFord** · 09-03-2006, 12:49 AM

Quote:

Originally Posted by 03ZXthree

you forgot the inpros...
And 03-04 regular foci have grey housing like you said...
But SVT is black housing...not grey

Noted. Thanks man.

**focusonfocus** · 09-03-2006, 12:53 AM

morette..
by looking at the fitment quality, that one looks more like ebay projector replica..

**JFord** · 09-03-2006, 01:04 AM

Thats the hood I think. Notice the projector in the outter beam housing. The ebay replicas only have halogen pattern reflectors.
Regardless I removed it because I think you def could be right. I do think however they are customized with hella lenses or something, way to hard to tell. Thanks man.

**focusonfocus** · 09-03-2006, 01:53 AM

like 4 years ago, there was only halogen reflector, then about 2 years ago, same style but projector came out.

anyway, only way to find out ebay replica or not is to see the mounting bracket under the hood..

oh and you could add hella quad style, and morette quad style too..and also bmw style headlight over euro market

**JFord** · 09-03-2006, 02:06 AM

Hella Quad style? Must have happened when I wasn't around never heard of it. Any examples?
All I have are these...
http://www.autobodyart.co.uk/Product...01-HL-QUAD.jpg
which are the euro specs I couldn't find before

**Azwethinkweiz** · 09-03-2006, 02:06 AM

Added

**focusonfocus** · 09-03-2006, 02:11 AM

oh yeah that is the one..
http://rds.yahoo.com/_ylt=A0Je5qcLcv...ampa_hella.jpg

**CWCZX3** · 09-03-2006, 10:56 AM

Inpro black St170's

**sleeperlove** · 11-14-2006, 10:09 PM

Where can the inpro lights be purchased????

**2focusd** · 11-14-2006, 10:13 PM

The no-no site has them

-Brian

**sleeperlove** · 11-14-2006, 10:15 PM

pm sent 2focused

**2focusd** · 11-14-2006, 10:17 PM

PM shot right back

-Brian

**CrUziN4L** · 11-14-2006, 11:20 PM

u guys are sooo cute together

**LornesBored** · 11-14-2006, 11:23 PM

wow.

feel the love

**2focusd** · 11-14-2006, 11:46 PM

No Canadians allowed, and you're close enough to the border Chris

-Brian

**o2_designs** · 11-14-2006, 11:54 PM

Another pic of Inpros. These could prob be added to list...

**LornesBored** · 11-14-2006, 11:57 PM

chiming in on in.pros:

**o2_designs** · 11-15-2006, 12:15 AM

Heres the 03 and 04 Grays...

**2focusd** · 11-15-2006, 01:13 AM

Here's my '03 housings:

-Brian

**sleeperlove** · 11-15-2006, 08:19 AM

Quote:

Originally Posted by CrUziN4L

u guys are sooo cute together

we spooned afterwards too

**hEaT** · 11-15-2006, 01:23 PM

Some more ST170:

**Azwethinkweiz** · 11-15-2006, 03:57 PM

I guess I can be cool and post a pic too

- E-code Hellas with 6k HID
